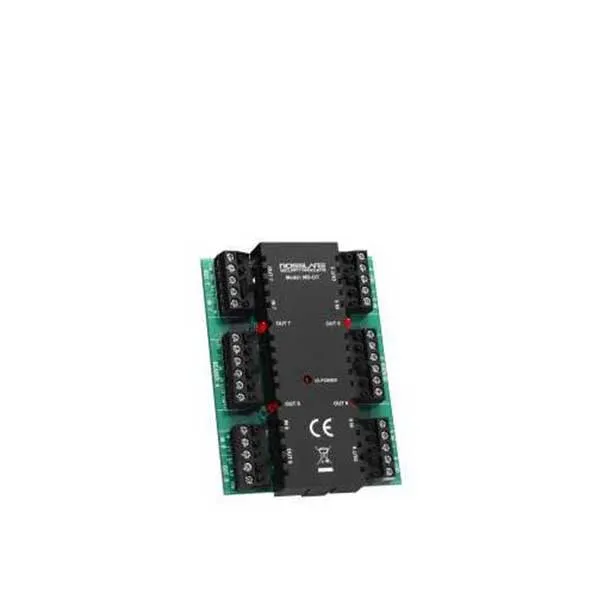

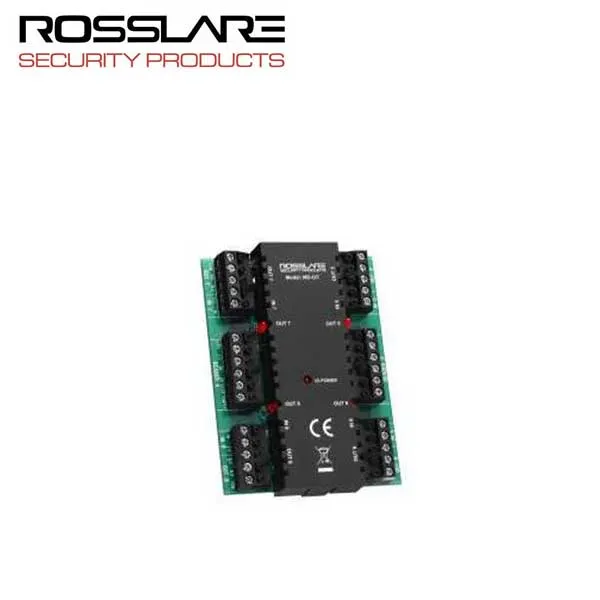

The ROS-MD-D02 2 Reader expansion board is designed with a focus on high quality and reliability and is ideal for residential and commercial applications. Easy to install and operate, the MD-D02 expansion board features state-of-the-art supervised communications with the controller. The expansion board adds two additional readers or keypad inputs; four relay outputs and four supervised inputs to the access control panel. As a result, an access control panel with the MD-D02 expansion board can support a total of four readers and four doors. In addition, it is possible to add any keypad or biometric reader that supports the Wiegand, Clock-and-Data or any other format supported by Rosslare's AS-525 AxTrax Software transmission formats. The host access controller has complete control over the additional readers, inputs and outputs of the MD-D02 expansion board.

Features:

• Additional two proximity readers or keypads

• Four relay outputs and four supervised inputs to the access control panel

• Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility

• LED status feedback for 12V power and relay activation

• Cost effective and modular installation

• Compatible with Rosslare’s AC-225 and AC-525 networked access controllers

• Input and output configurability using Rosslare’s AS-525 AxTrax software

• Backed by Rosslare's International Guarantee and service with ISO9001 (Certified TUV Rhineland) level business and manufacturing operations
