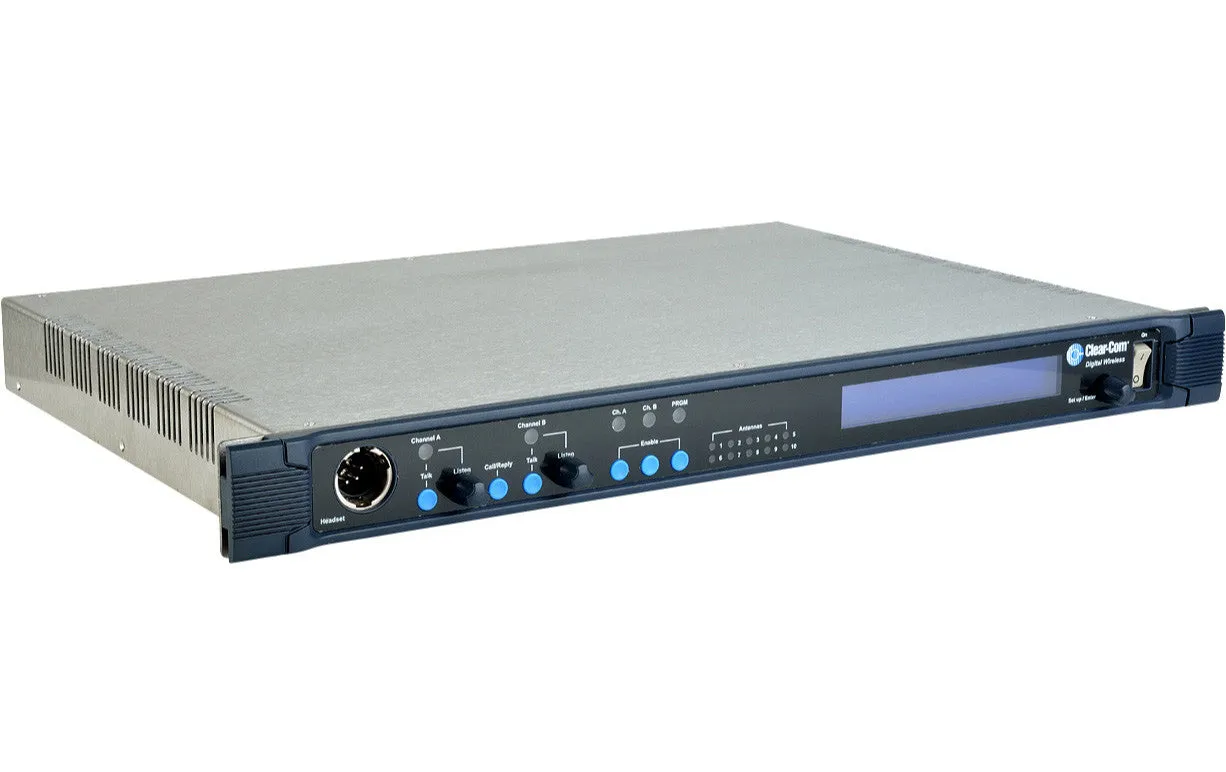

The FreeSpeak II-Base-5 is a standalone wireless system that can connect up to 5 full-duplex beltpacks. Up to 10 active transceiver antennas can enable beltpack-to-base staion distance range up to 3,200ft (1,000m). The system has 4-wire and partyline intercom connectivity, program feed input, stage announce, IFB, up to 5 wireless partyline groups and partyline call alert functionality. The base station can intelligently mix 1.9GHz and 2.4GHz system components, such as wireless beltpacks and transceiver antennas on the same system.

NOTE: The 20 beltpack FSII-BASE has been updated with the release of the FSII-BASE-II, which can support a total of 25 beltpacks and 10 active transceiver antennas.

A FreeSpeak II (FS II) system consists of five main elements:

Wireless beltpacks (FSII-BP-19, FSII-BP-24).

The Base station (FSII-BASE) that routes communication to and from the beltpacks and other audio devices.

Antennas (FSII-TCVR-19, FSII-TCVR-24) that provide coverage zones in which the beltpacks operate.
Optional antenna splitters (PD2203) that run up to 5 separate antennas.

Suitable headsets such as the Clear-Com CC-300-X4.

Specifications:

• Base-to-Beltpack Frequency Response: 100 Hz - 7.1 kHz.
• No. of Beltpacks per Base Station: 5
• No. of Transceiver Antennas Supported by Base: 10
• No. of Active Antenna Ports: 2
• PC Programming Port: DB9
• Relay Port: DB9
• Partyline Intercom A and Intercom B (each): XLR-3F with XLR-3M loop through, on/off termination switch (via software)
• Four-Wire/Matrix Connection: 4 RJ-45 (Intercom 3 - 6)
• Program Input: XLR-3F, transformer isolated, line-level input
• Stage Announce Output: XLR-3M, transformer isolated, line-level output
• Front Panel Headset: 4-pin male connector with 2-channel capability and individual talks and listens
• Front Panel Display: 254 x 32 dot-graphic VFD
• Front Panel Indicators: 2 Talk LEDs for frontpanel headset, CH A and CH B partyline enable LEDs, Program Input enable LED, 10 individual antenna LEDs
• Base Station Programming/Editing: Push-to-enter rotary encoder
• Dimensions: 1.75 x 19.0 x 12.5 in (44 x 483 x 312 mm) (HxWxD)
• Weight: 10.8 lbs (4.9 kg)
