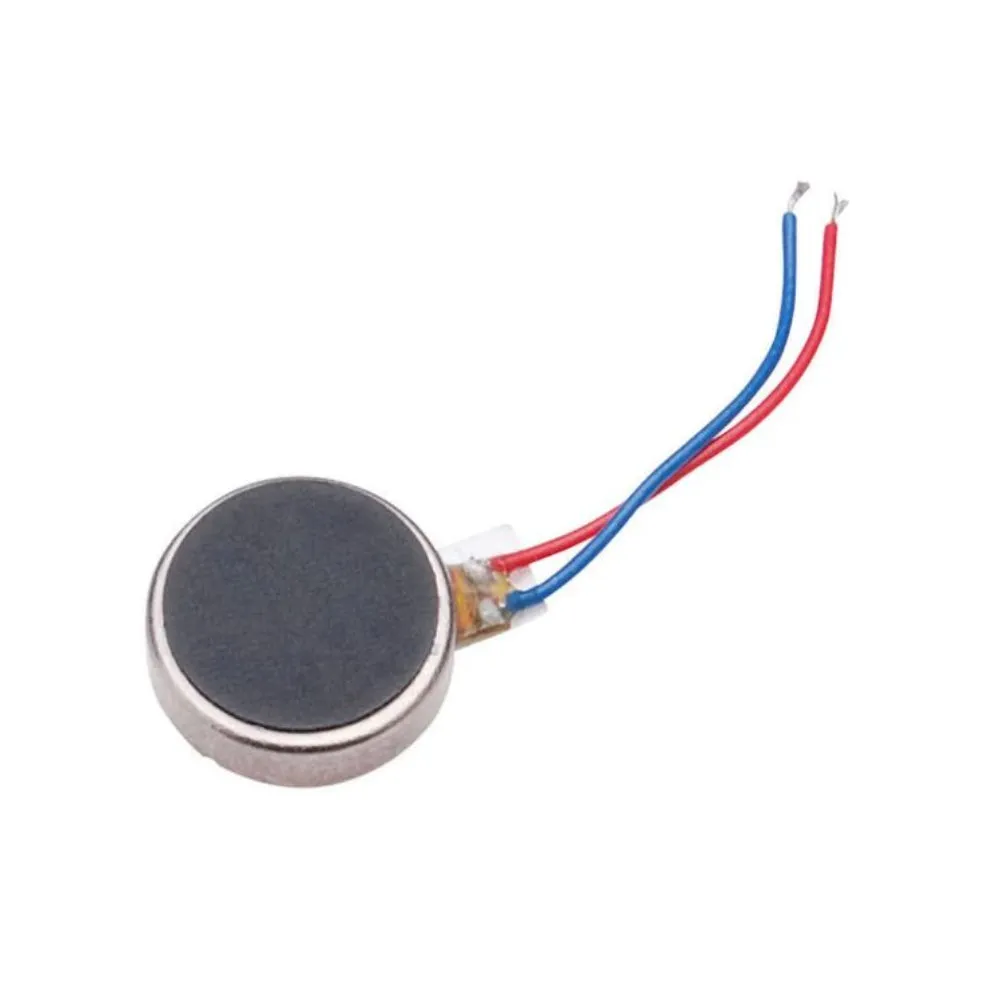

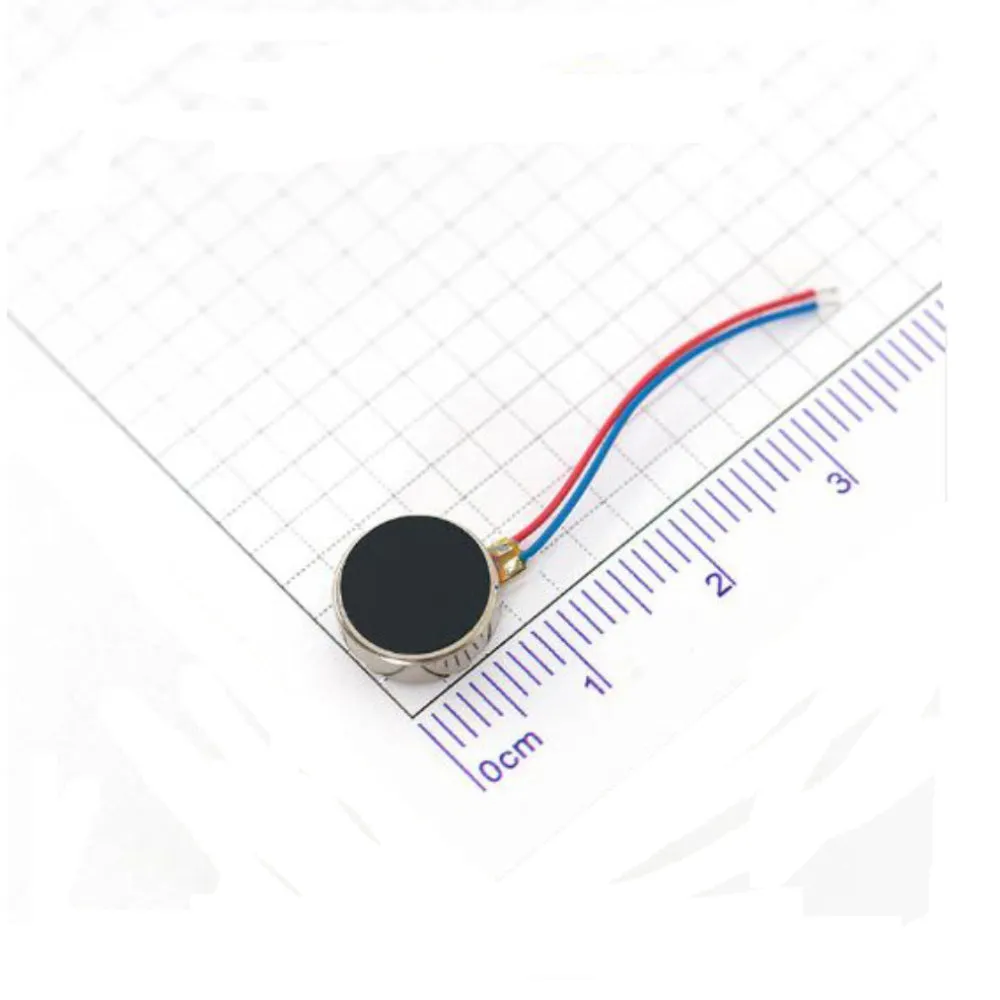

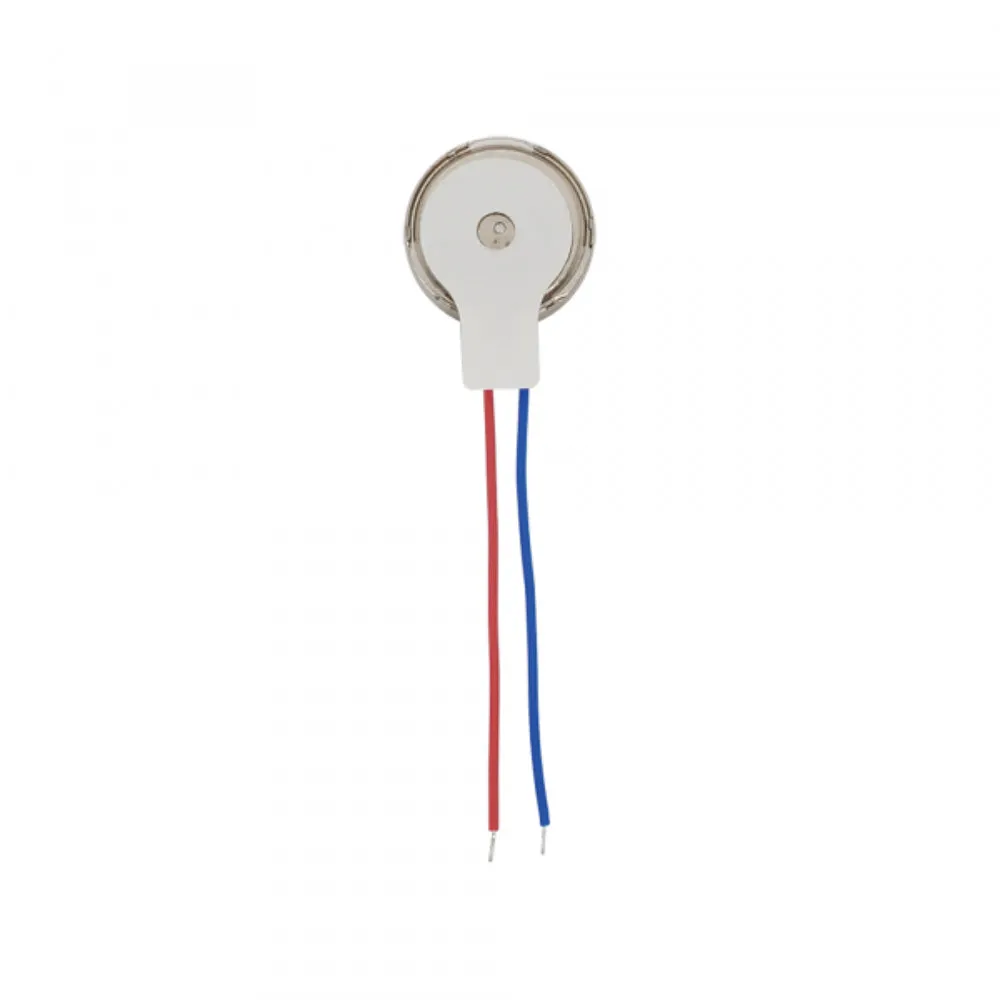

The 1027 micro vibrator motor is a flat, coin-type motor featuring brush technology, specifically designed for applications that require compact vibration feedback. With a diameter of 10mm and a thickness of 2.7mm, it operates on a 3V power supply and provides effective vibration performance. This motor is well-suited for devices where space is limited, making it ideal for wearables, handheld electronics, and medical applications.
Features:
Compact size suitable for tight spaces in electronics.Low power consumption, ideal for battery-powered devices.
High vibration force of 1.0 Grams for effective feedback.
Reliable performance with brush technology ensuring durability.
Lightweight design for easy integration into small devices.
Applications:
Wearable technology such as fitness trackers and smartwatches.Medical devices need tactile feedback and alerts.
Handheld electronics including smartphones and gaming controllers.
Haptic feedback in small electronic gadgets and devices.
Compact toys and other miniature applications.
Technical Details
- Technology Type: Brush
- Diameter: 10.0mm
- Thickness: 2.7mm
- Rated Voltage: 3.0V DC
- Operating Voltage: 2.7V to 3.3V DC
- Rated Current (Max): 80mA
- Starting Current: 120mA
- Rated Speed (Min): 10,000 RPM
- Vibration Force: 1.0 Grms

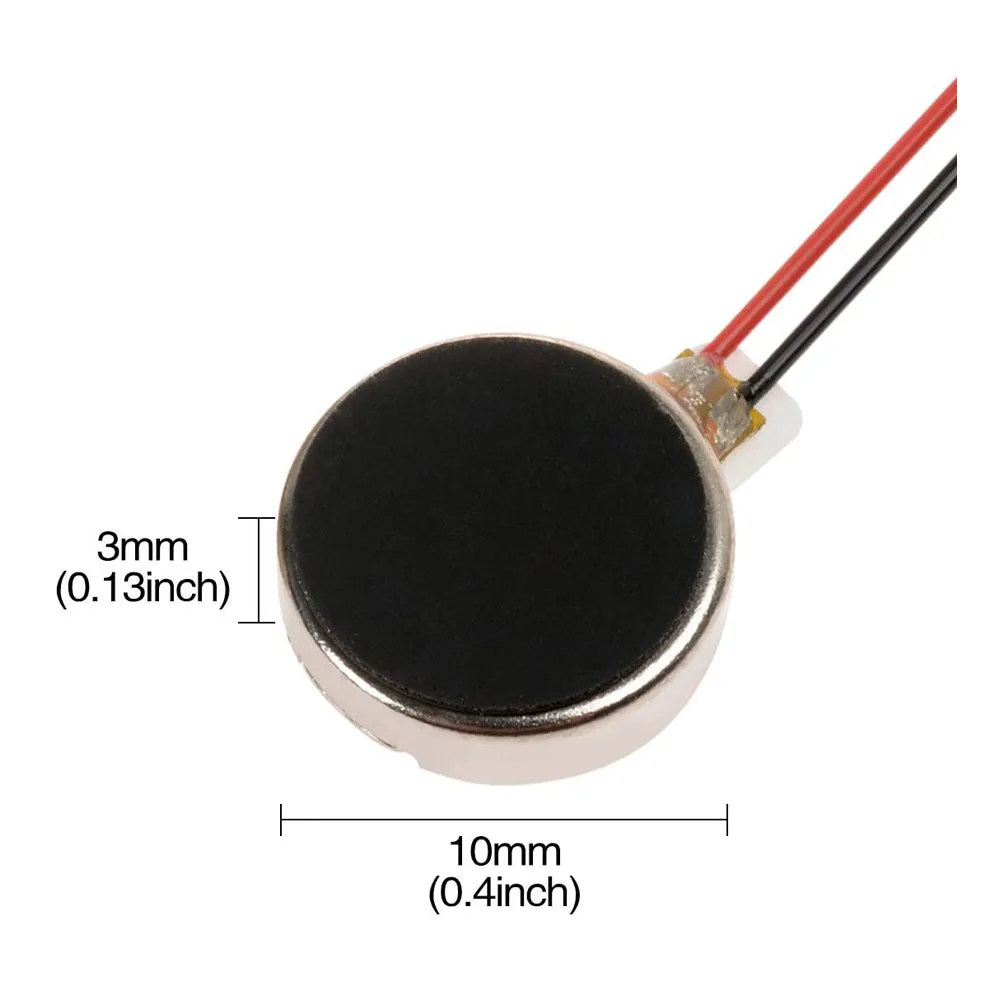

Drawing
Package Includes
- 1 x 1027 10mm Diameter 2.7mm width Flat Button Coin type Micro Vibrator Motor 3V
