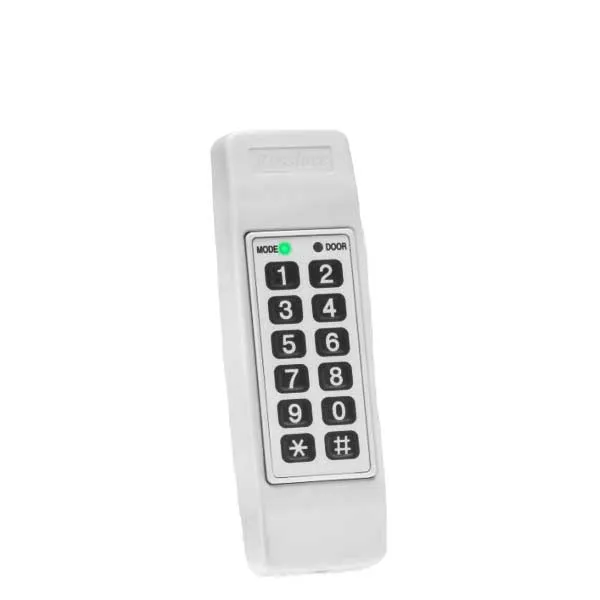

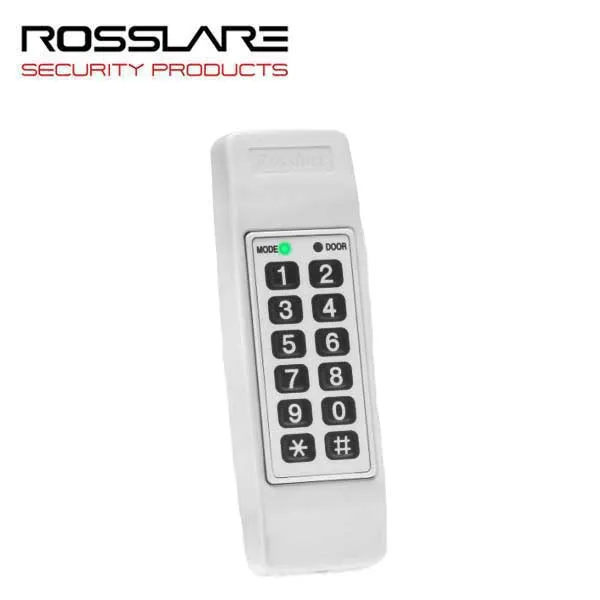

The AC-C32 is part of Rosslare’s series of indoor standalone controllers, ideal for residential and commercial access applications. It is an industry favorite for those looking for a basic access controller that simply gets the job done, yet utilizes both proximity cards and/or PIN codes. The AC-C32 is compatible with Rosslare’s door control systems and access control accessories, including: indoor egress buttons, secure power supply units, cards and tags.
Features
- Supports up to 500 users
- Access via proximity card and/or PIN code
- Compatible with 26-Bit EM proximity cards
- Two tri-colored LED and internal buzzer indicators
- Lock strike and auxiliary relay outputs
- Input for Request-to-Exit (REX) button
- Internal case and wall tamper detection
- Supplied with a security screw, security screw tool, and a mounting template
- Three user levels: Normal, Secure, Master
- Three operational modes: Normal, Bypass, Secure
- Programmable siren time
- Programmable lock strike release time
- Bell, chime, siren and strobe available when used with the BL-D40
Specifications:
| Operating Voltage Range: | 12–16 VDC From a regulated power supply |
| Input Current: | Standby: 40 mA Maximum: 90 mA |
| Relay Outputs: | Lock Strike Relay – Electronic, 3.5 A with built-in suppressor protection Auxiliary Relay – Form C, 1A |
| Inputs: | REX – N.O., Dry Contact. Auxiliary Input (In/Monitor) Monitor Mode – N.C., Dry Contact Input Mode – N.O., Dry Contact |
| Proximity Card Reader: | Maximum read range: : 90 mm (3.5 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM proximity cards |
| Capacity: | 500 users, dual code/card or code card each |
| Keypad: | 2x6 keys for local programming and 4- to 8-digit PIN codes entry |
| User levels: |
Normal, Secure, Master |
| Security Modes: | Normal, Bypass, Secure |
| Audio/Visual: | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| RFI Protection: | > 20 V/m up to 1000 MHz |
| Dimensions: | 3.62 x 3.62 x 0.94 in. |
| Rated: | Indoor Use |
| Manufacturer's Warranty: | 2-Year Limited Product Warranty |
