Description

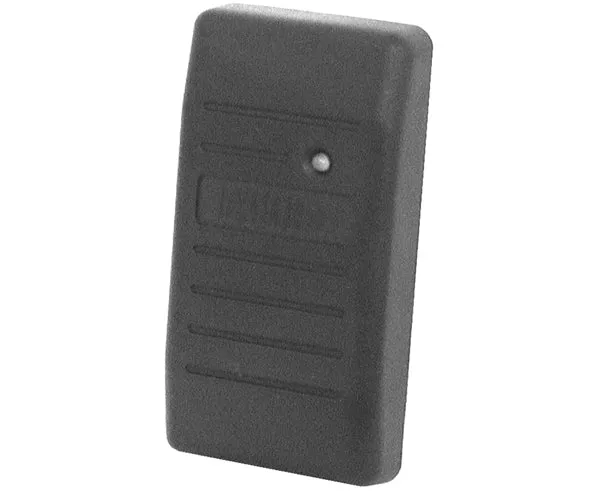

RemotePro CR Surface Mount Proximity Card Reader HID

The RemotePro CR series is designed to operate in conjunction with our Ascent family (select models), Edge family, and many other popular security management systems using a 26-bit Wiegand protocol. Simply connect the RemotePro CR of your choice to a new or existing master controller (via 6-conductor, 22-gauge wire) and you have immediate access control.

Simple Is Our Name
These keypads couldn’t be any more simple to install, program, and use.

Versatility Is Our Game
We offer three versions to suit your needs: a post-mount keypad, a post-mount keypad with intercom, and a single-gang keypad.

Sturdy & Durable
All our products are made from high-quality materials that will last for years to come.

Plays Well with Others
Connect to any master controller that uses the 26-bit Wiegand protocol with six wires and you’re in business. Easy as that!

Made in the USA from Global Materials

Features

Features

• HID® ProxPoint® Plus or Secura Key reader
• 26-bit Wiegand output
• Audible-tone and LED feedback
• Backlit keypad
• Post mount

Works With

• Ascent Family (select models)
• Edge Family
• Other 26-bit Wiegand master controllers

Specifications

Specifications

• Input: 16.5VAC (transformer included)
• Output: n/o or n/c Contact 1-99 second
• Operating Temperature: -15 to 175°F
• Dimensions: 6.625h x 5.50w x 4.25d
• Ship Weight: 5 Lbs.
• Relay Specs
• DC Load AC Load
• Contact Rating 1A @ 24V .5A @ 120V
• Max. Switching Voltage 150V 220V
• Max. Carrying Current 2A 2A
• Max. Switching Power 28W 60VA
