Features
- Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

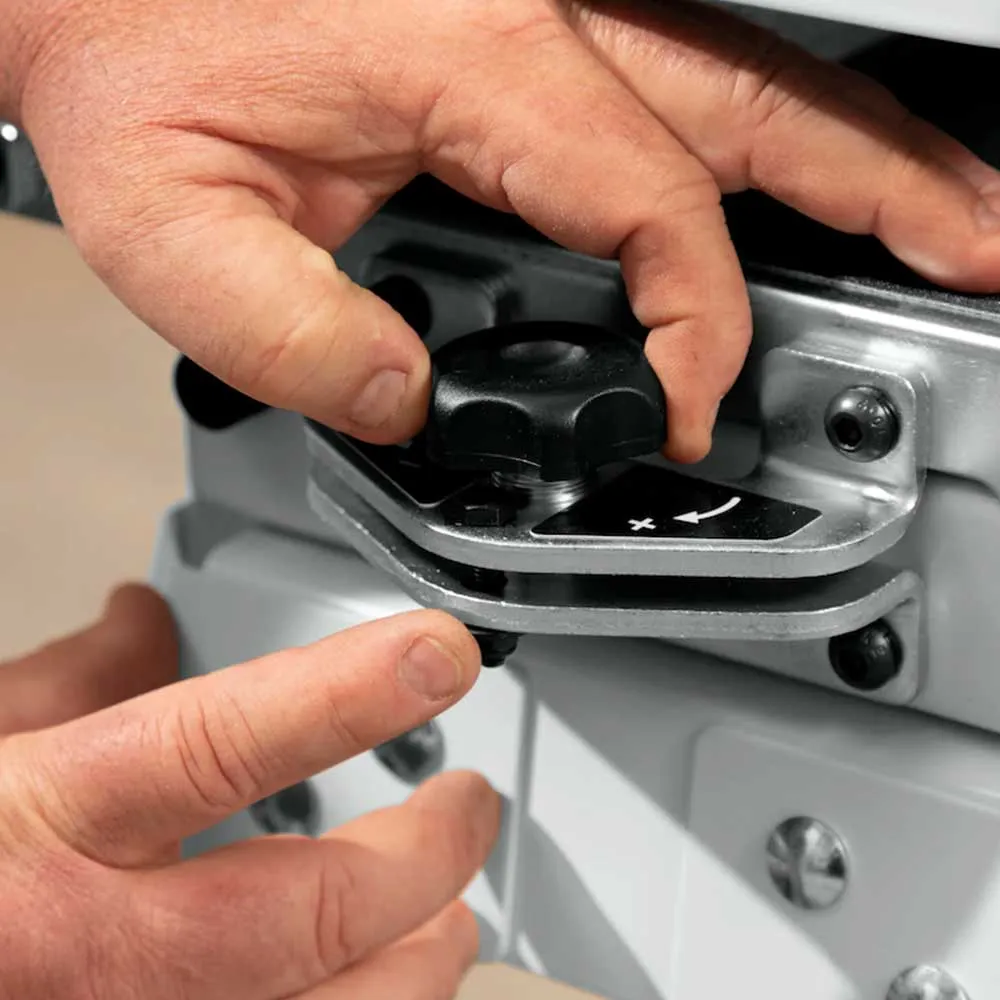

- Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
- Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

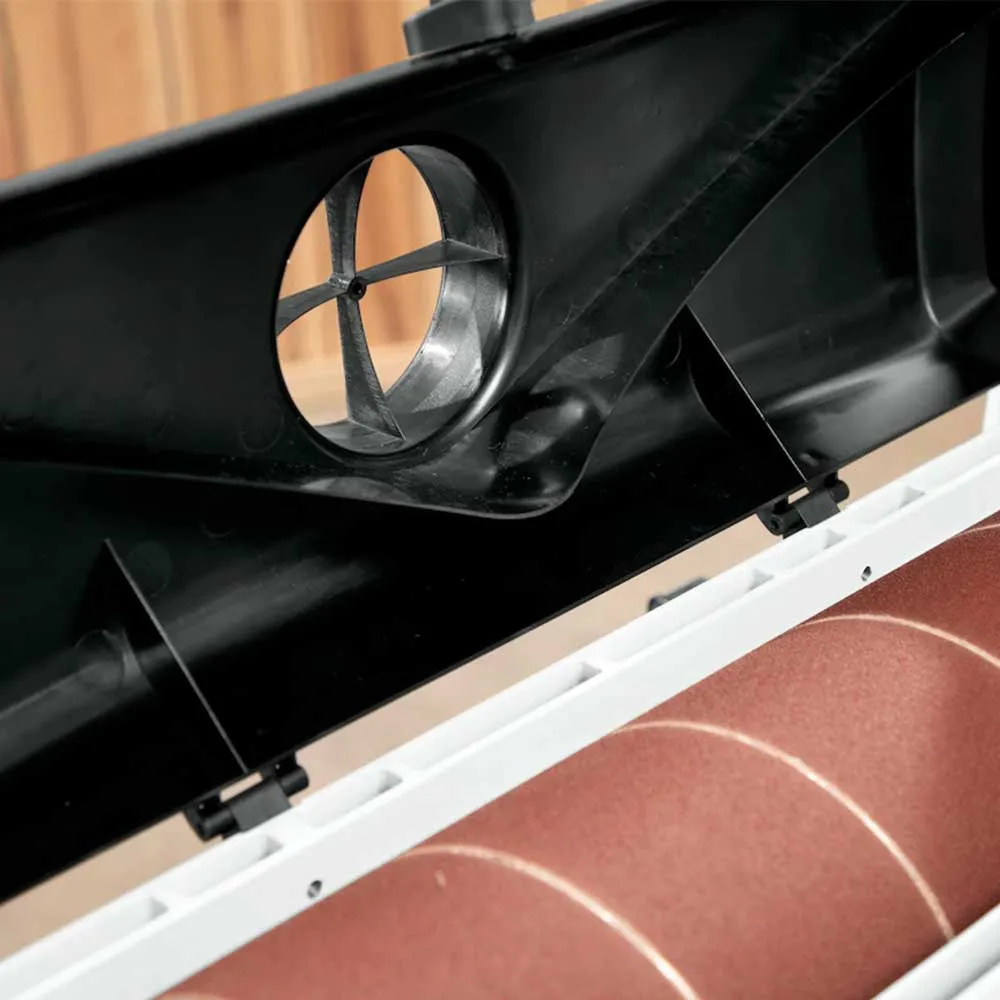

- Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 collection port
- Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
- Precision-flattened reinforced steel conveyor bed
- Redesigned conveyor system pulls the workpiece through the sander instead of pushing

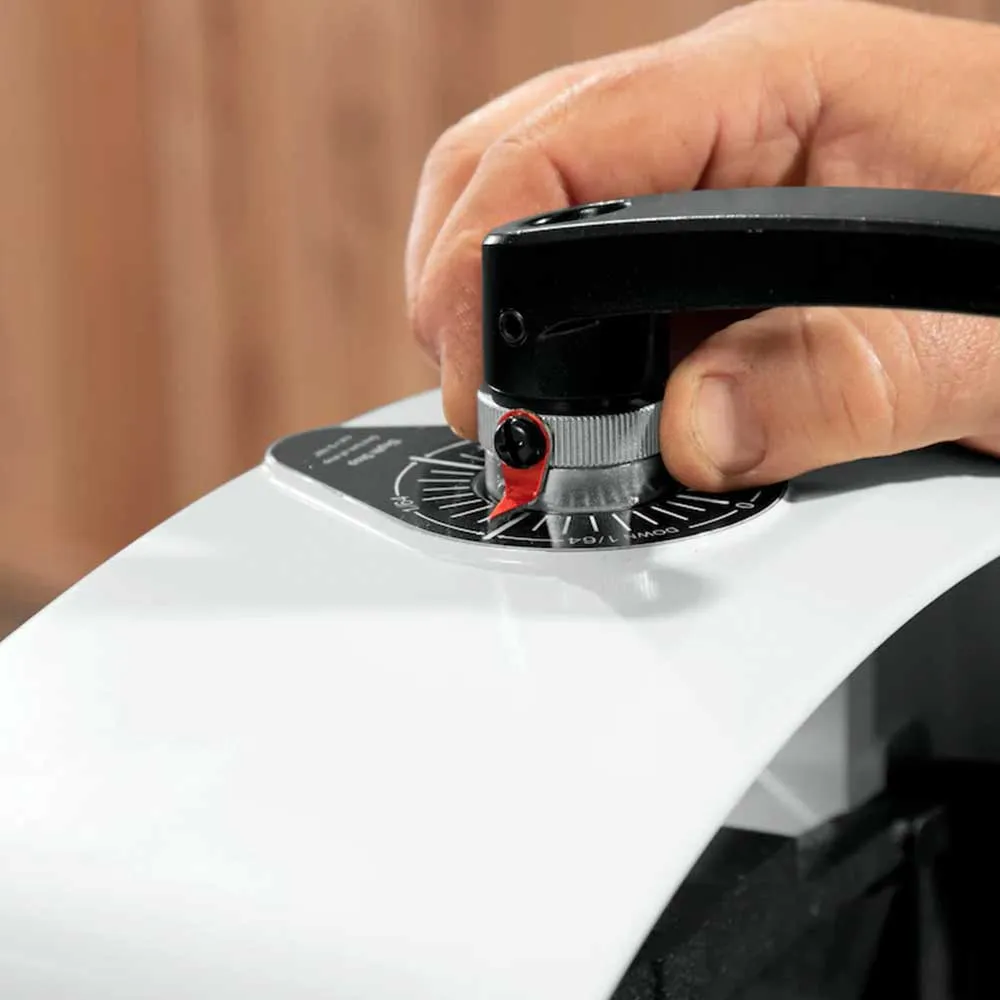

- One rotation of the top-position handwheel adjusts the drum height by 1/16
- The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
- Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
- Toolless abrasive take-up clips make changing abrasives quick and easy
- Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
- Separate feed and drum motors provide independent control, optimizing the performance of the sander
- Conveyor belt TRACKERS reduce the need for manual belt adjustments

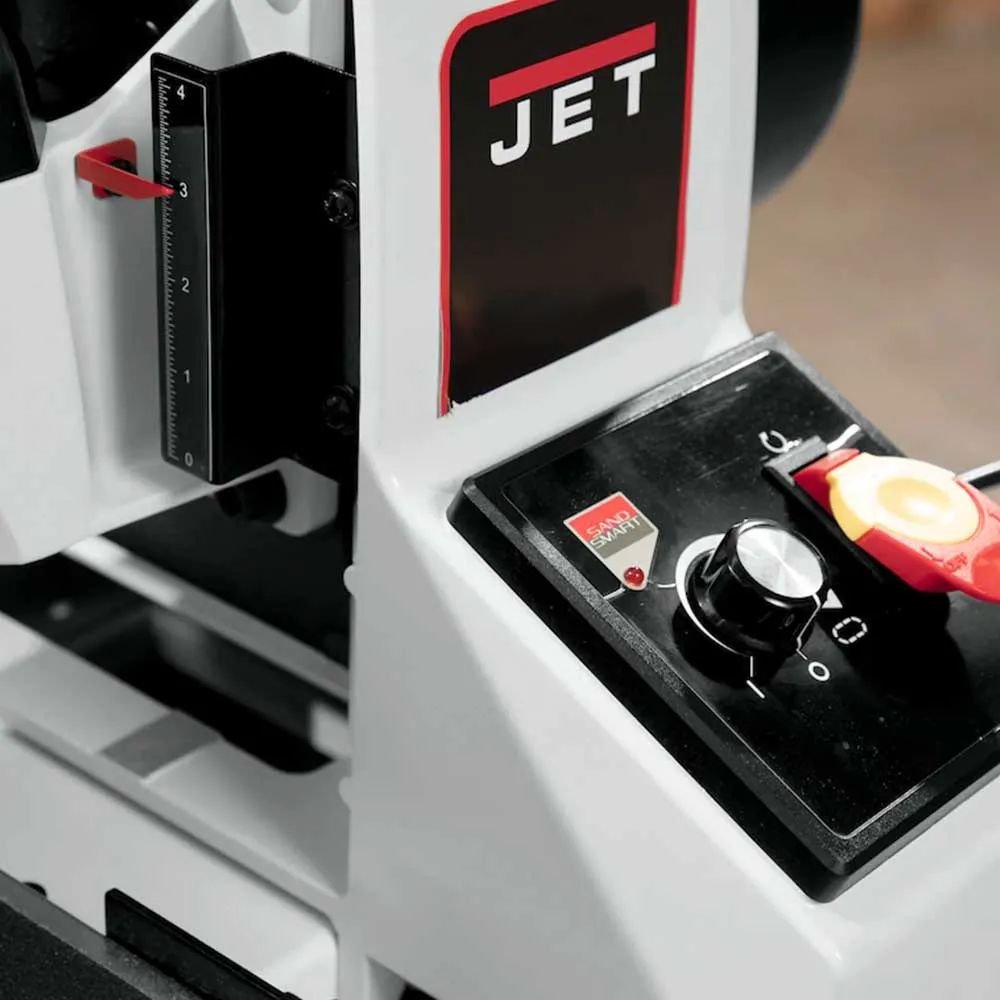

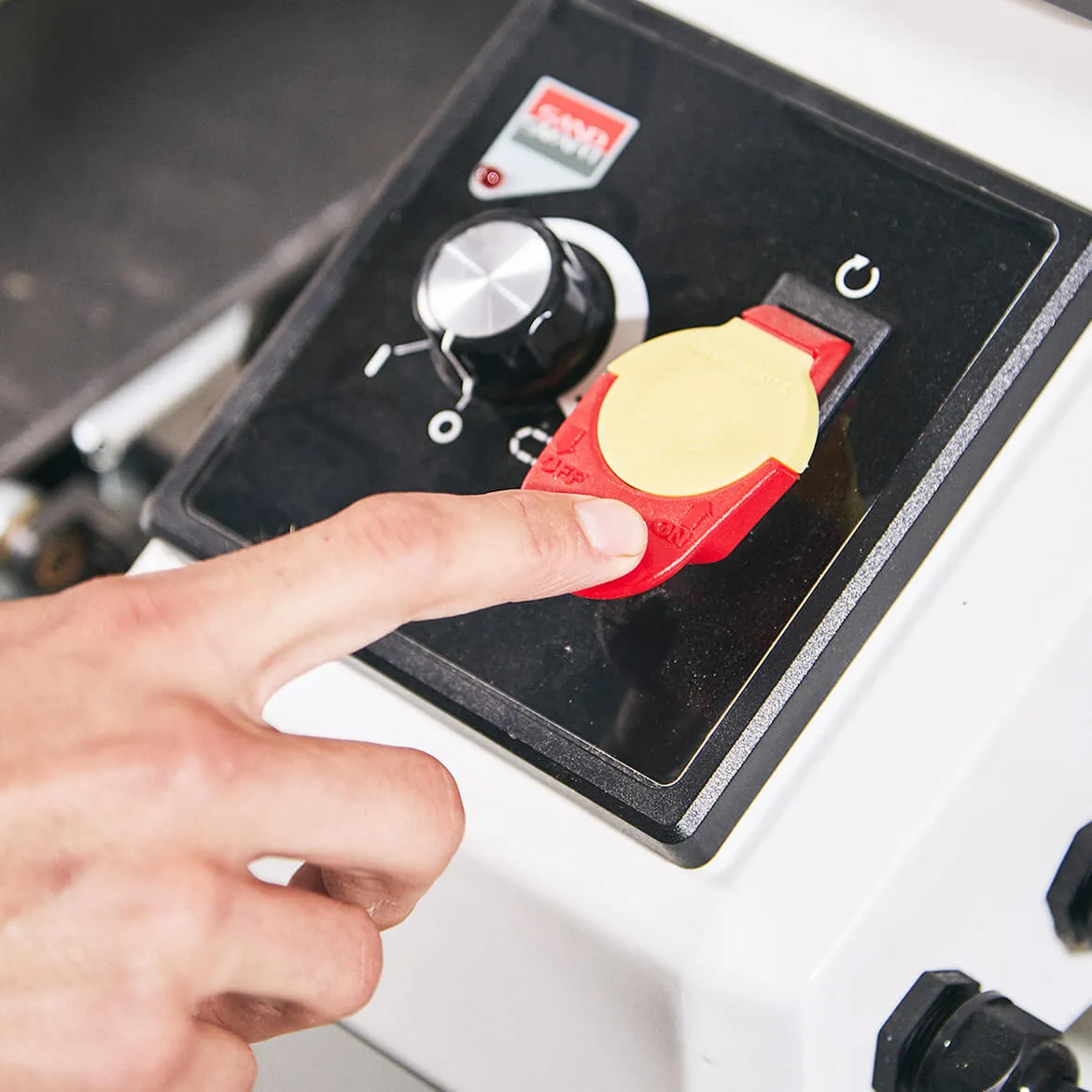

- Integrated on/off switch and variable speed control knob are conveniently located
- Closed Stand features a 17-1/2 x 38-1/2 footprint to increase stability and has a solid door for access to closed storage and has integrated wheels for mobility
- Drum is easily removable
- Drum utilizes sealed and permanently lubricated ball bearings for longer life
- Dust hose hanger for added ease of use
What's in The Box

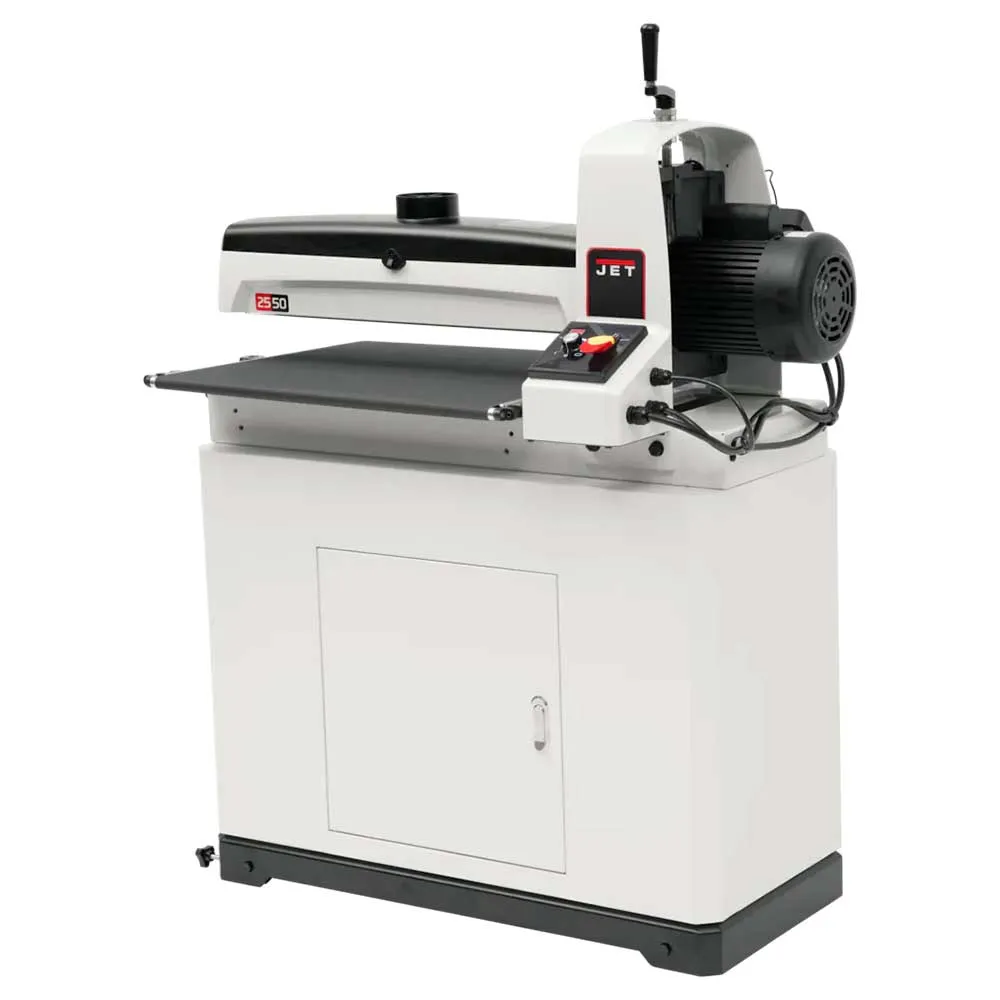

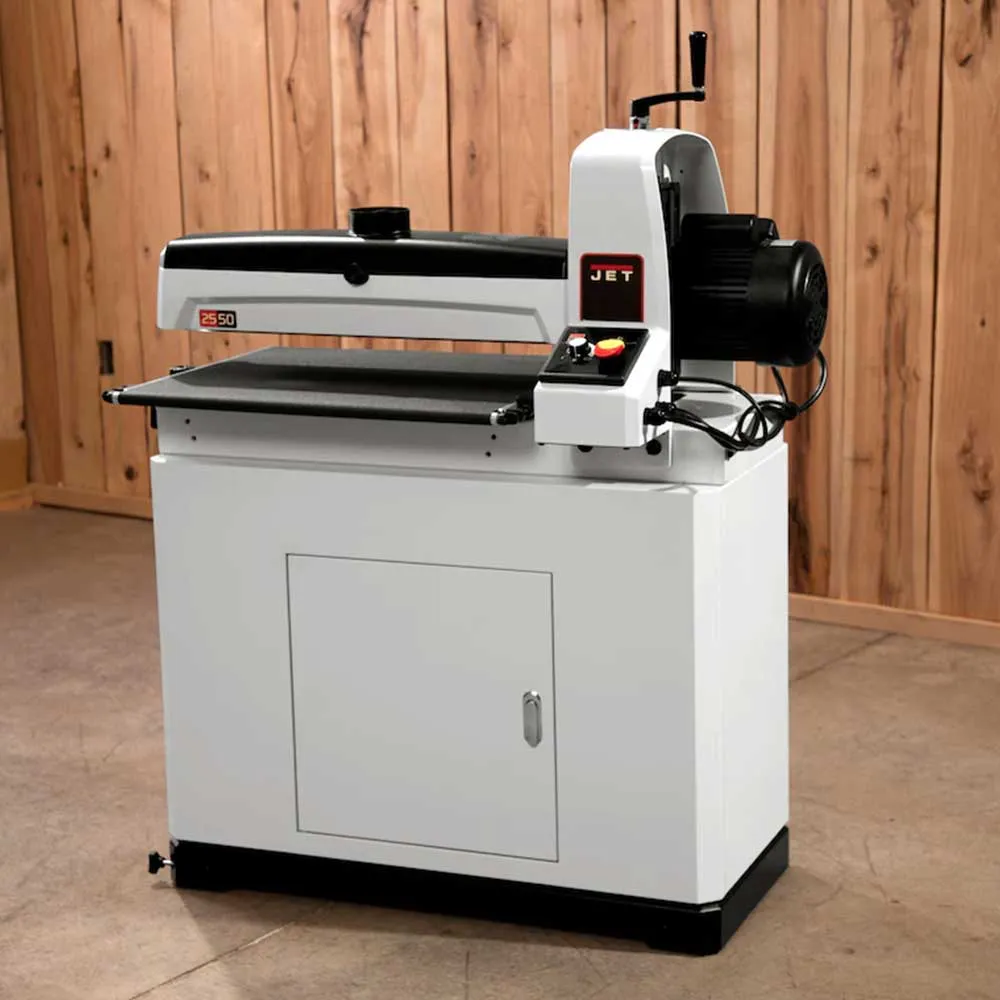

- 5-Inch x 25-Inch Stationary Drum Sander w/ Closed Stand
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | 723544CSK |
| Model | JWDS-2550 |
| Brand | Jet |
| Voltage | 115V |
| Horsepower | 1-3/4 Hp |
| Phase | Single |
| Amperage | 15A |
| Drum Diameter | 5 in. |
| Drum Length | 25 in. |
| No Load Speed | 1,720 Rpm |
| Conveyor Motor | 43 in-lbs. Torque Direct-Drive |
| Conveyor Speed | 0 - 10 Fpm |
| Min. Board Length | 2-3/8 in. |
| Min. Board Thickness | 1/32 in. |
| Max. Board Thickness | 4 in. |
| Max. Board Width | 50 in. (Two Passes) |
| Dust Port Outside Diameter | 4 in. |
| Length | 51.81 in. |
| Width | 27 in. |
| Height | 54.31 in. |
| Product Weight | 302 lbs. |
