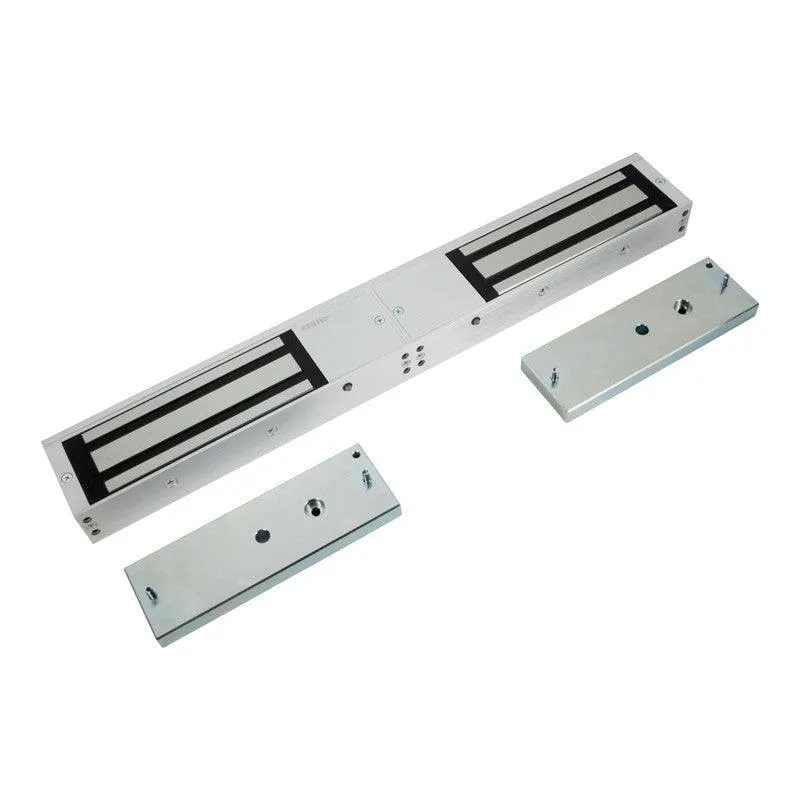

FSH Magnetic Door Lock, Standard Double Non Monitored, FSHFEM6600D operates on 12/24VDC power.

This product is designed with a fail-safe feature, to ensure maximum security of your premises. It's compatible with both 12VDC and 24VDC power sources, providing a versatile solution for various applications.

Installing the FSH Magnetic Door Lock is a simple and secure solution for enhancing security and providing peace of mind in your home or office. These reliable and efficient non-monitored locks effectively protect your space.

Model: FSHFEM6600D

The FSH FEM6600 Series of electromagnetic locks come with a 5 year mechanical and electronic warranty and a hold strength of up to 580kg, so you have the peace-of-mind that entrances are secured to protect people and property.

Tested to Australian and New Zealand standards, including a 2-hour fire rating, these maglocks are Dual Voltage, 12/24VDC, and come in single or double (D) versions, either monitored (M) or non-monitored. Once powered off, the maglocks have no residual magnetism, which extends the life of the lock and door and gives a better user experience.

The monitored versions (M), include a red-green coloured LED indicator to quickly identify the door and lock status. Activated by a number of credential readers such as PIN pads, fob readers or other access control platforms, this range is ideal for most commercial applications.

Features

• Dual Voltage: 12 /24 VDC field selectable
• Door and Lock Status Monitoring Sensor
  (DSS and LSS S with M Models)
• Built-in varistor (MOV) surge protection
• Red-Green bicolour LED on monitored version
• No residual magnetism
• 5 year warranty
• Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015)

Specifications

Technical Specifications
