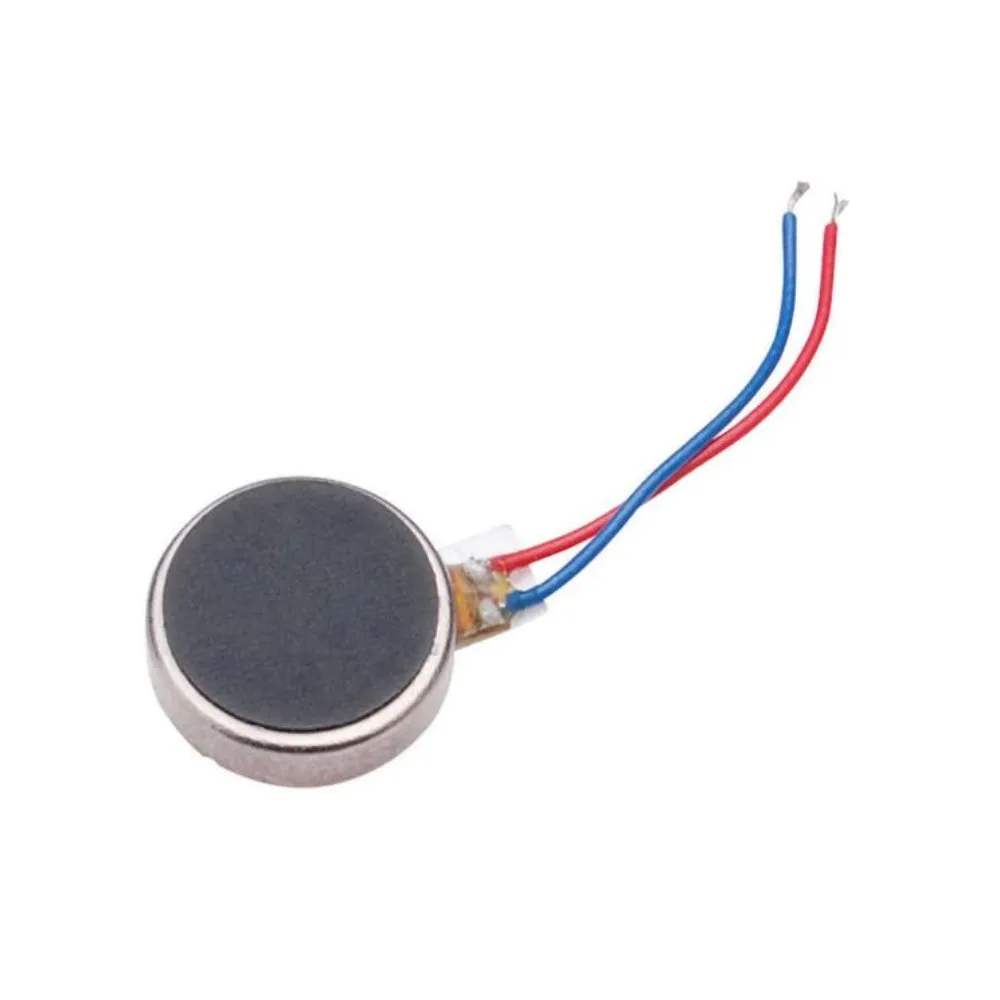

The 827 micro vibrator motor is a flat, coin-type motor designed with brush technology. It features an ultra-compact size with an 8mm diameter and a slim 2.7mm thickness, making it ideal for small, space-limited devices requiring vibration feedback. Operating at 3V, this motor provides efficient and reliable vibration performance, suitable for use in wearables, handheld devices, and other compact electronics.
Features:
Ultra-compact design is ideal for space-constrained applications.Low power consumption is suitable for battery-powered devices.
Brush technology for smooth and reliable vibration performance.
High-speed operation with up to 10,000 RPM for effective vibration feedback.
Lightweight and easy to integrate into small electronics.
Applications:
Wearable devices like fitness trackers and smartwatches.Medical devices requiring subtle tactile feedback.
Handheld gadgets such as mobile phones and gaming controllers.
Haptic feedback systems in small electronic devices.
Compact toys and other miniaturized gadgets.
Drawing
Technical Details
- Technology Type: BRUSH
- Diameter: 8.0 mm
- Thickness: 2.7 mm
- Rated Voltage: 3.0 V DC
- Operating Voltage: 2.7 ~ 3.3 V DC
- Rated Current MAX: 80 mA
- Starting Current: 120 mA
- Rated Speed (rpm, MIN): 10,000
- Vibration Force: 0.6 Grms
Package Includes
- 1 x 827 8mm Diameter 2.7mm width Flat Button Coin type Micro Vibrator Motor 3V
